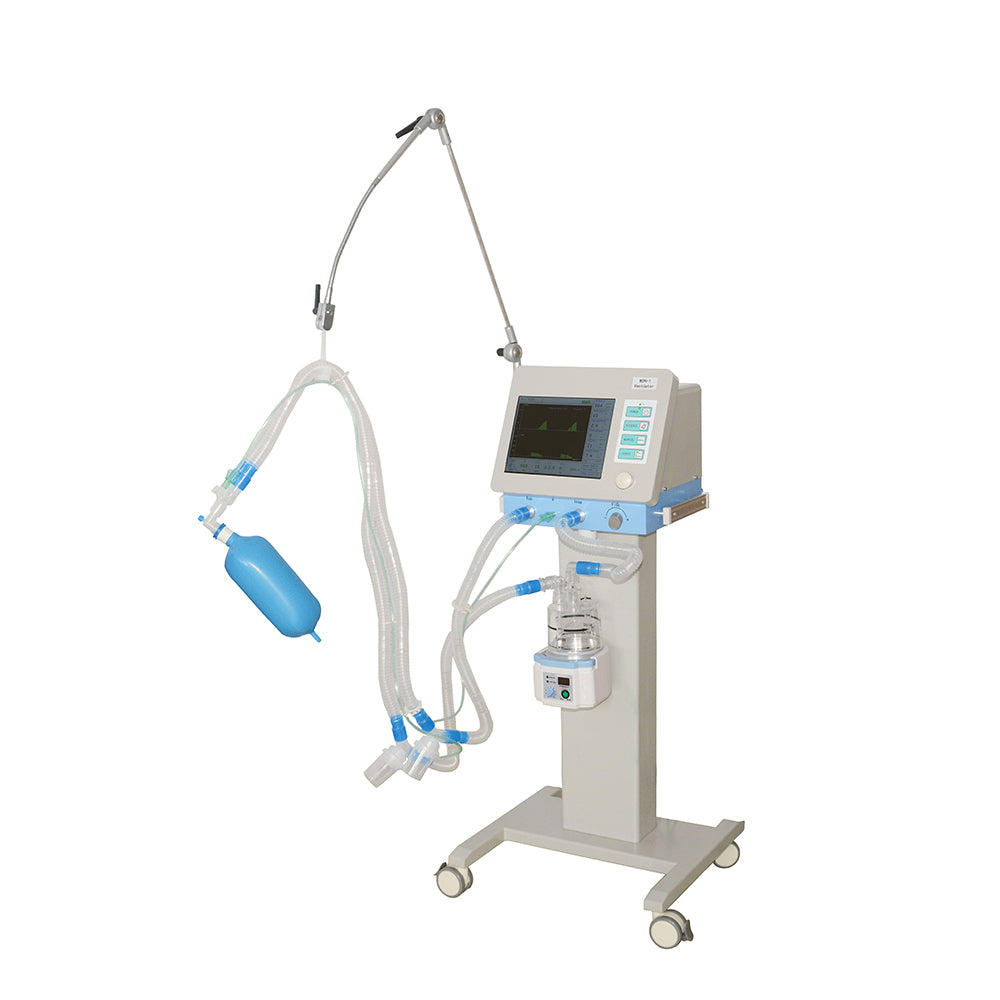

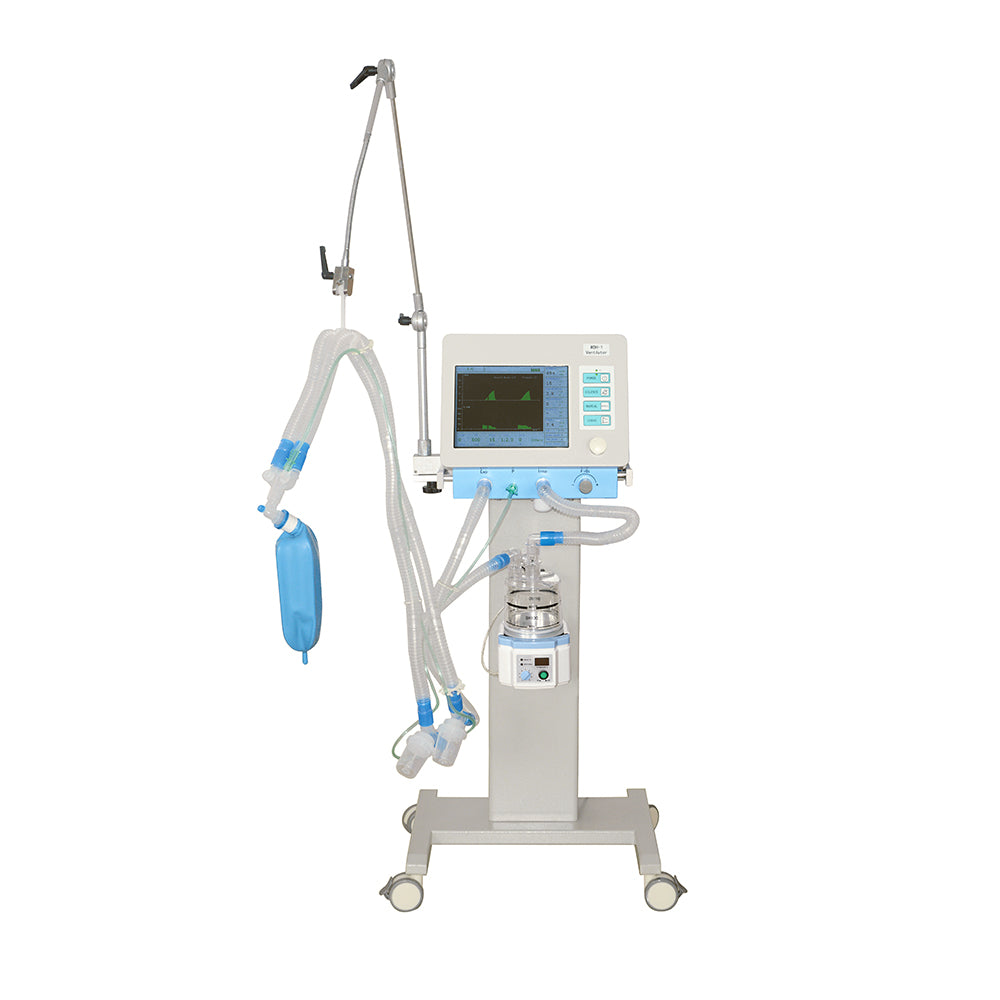

Hospital Medical Ventilator Equipment Patient Breathing Device
$3,800.00
1.Mode: A/C, SIMV, PCV, PSV, Manual2.Display: 10.4" TFT color screen3.Operation Method: Knob and Keys4.Tidal Volume: 50～1500ml5.Breath Frequency: 2～60BPM6.I:E Ratio: 3:1～1:37.PEEP:0～20cmH2O8.PSV Pressure: 0～3.5KPaAlarm parameters and alarm setting:1.Tidal Volume Upper...
1.Mode: A/C, SIMV, PCV, PSV, Manual

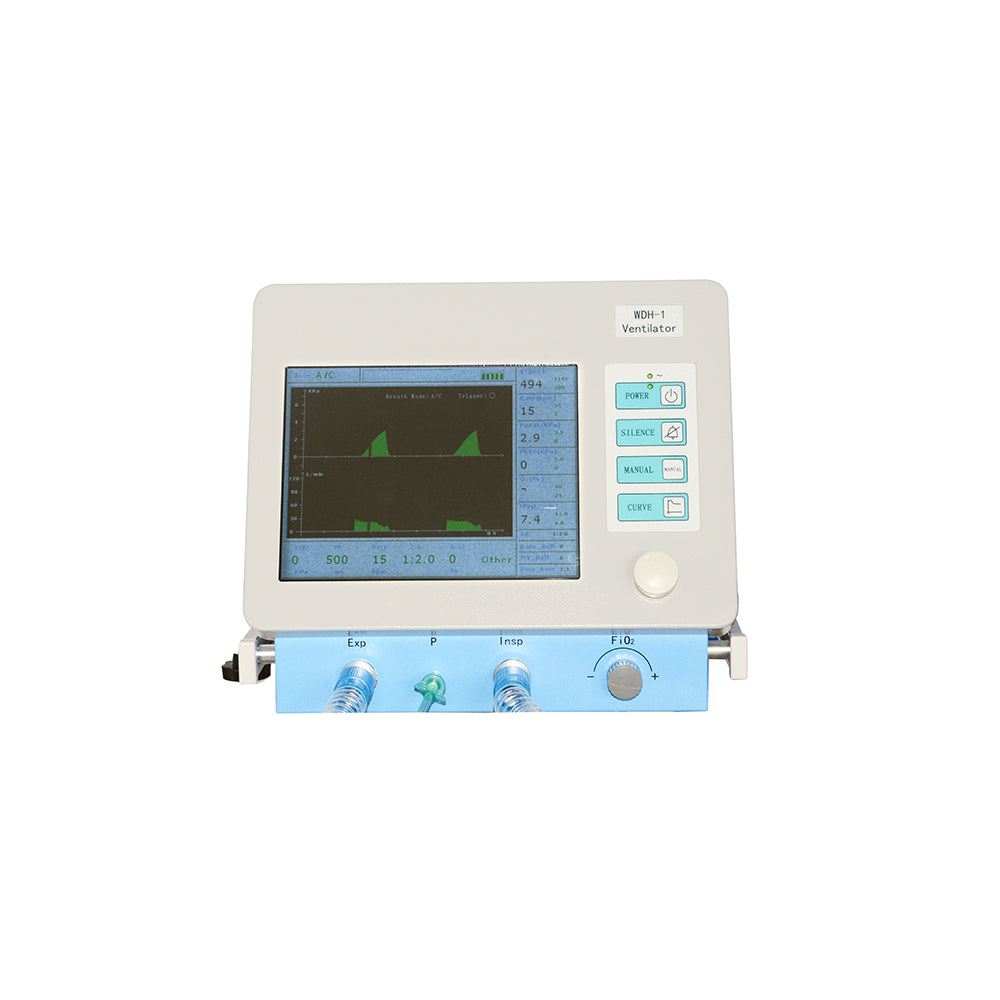

2.Display: 10.4" TFT color screen
3.Operation Method: Knob and Keys
4.Tidal Volume: 50～1500ml
5.Breath Frequency: 2～60BPM
6.I:E Ratio: 3:1～1:3
7.PEEP:0～20cmH2O
8.PSV Pressure: 0～3.5KPa
Alarm parameters and alarm setting:
1.Tidal Volume Upper Limit: 100～2000ml
2.Tidal Volume Lower Limit: 20～2000ml
3.Breath Frequency Upper Limit: 5～100bpm
4.Breath Frequency Lower Limit: 2～60bpm
5.Peak Pressure Upper Limit: 0.5～7.0KPa
6.Peak Pressure Lower Limit: 0～3.0KPa
7.PEEP Upper Limit: 0.5～3.0KPa
8.PEEP Lower Limit: 0～2.0KPa
9.Oxygen Concentration Upper Limit:30%～100%
10.Oxygen Concentration Lower Limit:21%～60%
11.MV Upper Limit: 4.0～40L/min
12.MV Lower Limit: 2.0～20L/min
13.Apnea Alarm and Setting: 3～12 S
2.Display: 10.4" TFT color screen
3.Operation Method: Knob and Keys
4.Tidal Volume: 50～1500ml
5.Breath Frequency: 2～60BPM
6.I:E Ratio: 3:1～1:3
7.PEEP:0～20cmH2O
8.PSV Pressure: 0～3.5KPa
Alarm parameters and alarm setting:
1.Tidal Volume Upper Limit: 100～2000ml
2.Tidal Volume Lower Limit: 20～2000ml
3.Breath Frequency Upper Limit: 5～100bpm
4.Breath Frequency Lower Limit: 2～60bpm
5.Peak Pressure Upper Limit: 0.5～7.0KPa
6.Peak Pressure Lower Limit: 0～3.0KPa
7.PEEP Upper Limit: 0.5～3.0KPa
8.PEEP Lower Limit: 0～2.0KPa
9.Oxygen Concentration Upper Limit:30%～100%
10.Oxygen Concentration Lower Limit:21%～60%
11.MV Upper Limit: 4.0～40L/min
12.MV Lower Limit: 2.0～20L/min
13.Apnea Alarm and Setting: 3～12 S
