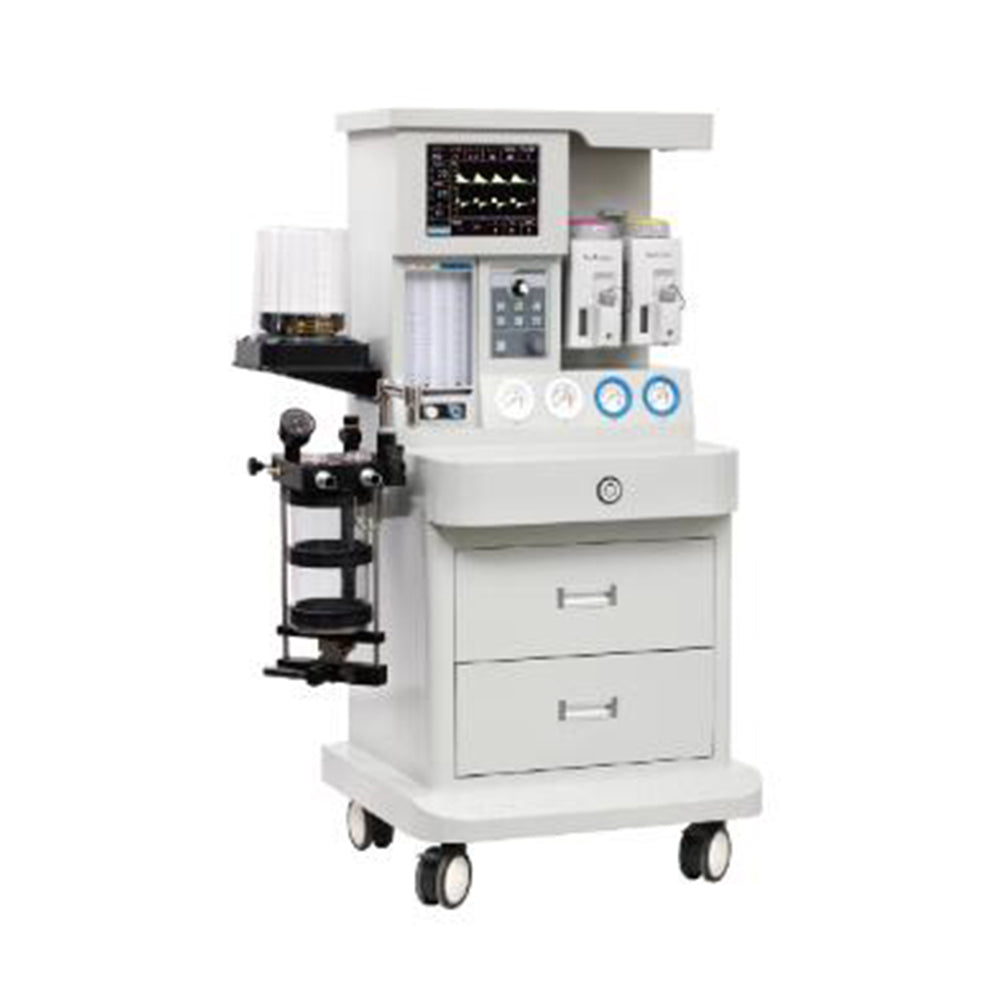

Medical Equipment Surgical Anesthesia Machine
$6,500.00
1.Respiration mode: IPPV, SIMV, SIGN, MANUAL, STANDBY2.Tidal Volume: 50～1600ml3.Respiratory Frequency: 1～65bpm4.I:E ratio: 4:1～1:45.Pressure Setting: 1～60cmH2O6.Trigger Pressure: -20～20cmH2O7.Working Mode: Semi～open, Semi～closed or Closed system8.Waveforms (Under Manual and Ventilation): P-t,...
1.Respiration mode: IPPV, SIMV, SIGN, MANUAL, STANDBY
2.Tidal Volume: 50～1600ml
3.Respiratory Frequency: 1～65bpm
4.I:E ratio: 4:1～1:4
5.Pressure Setting: 1～60cmH2O
6.Trigger Pressure: -20～20cmH2O
7.Working Mode: Semi～open, Semi～closed or Closed system
8.Waveforms (Under Manual and Ventilation): P-t, F-t

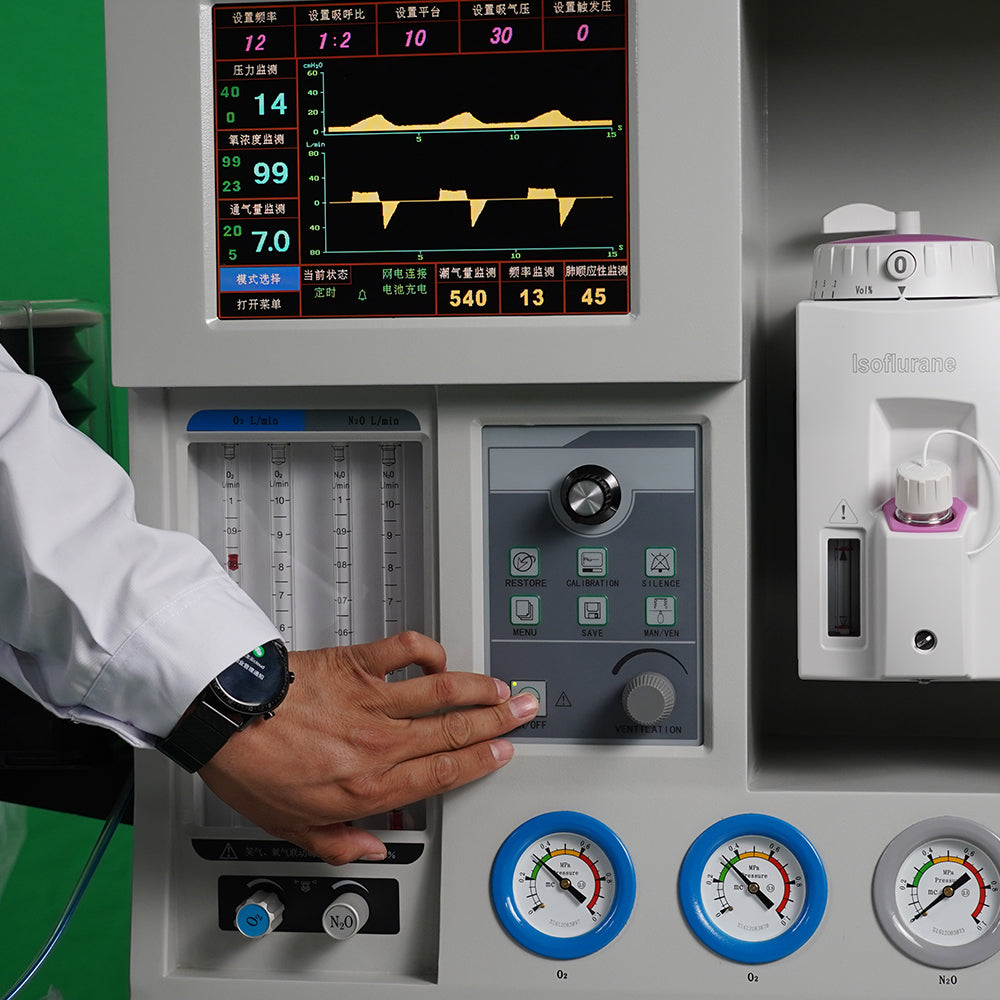

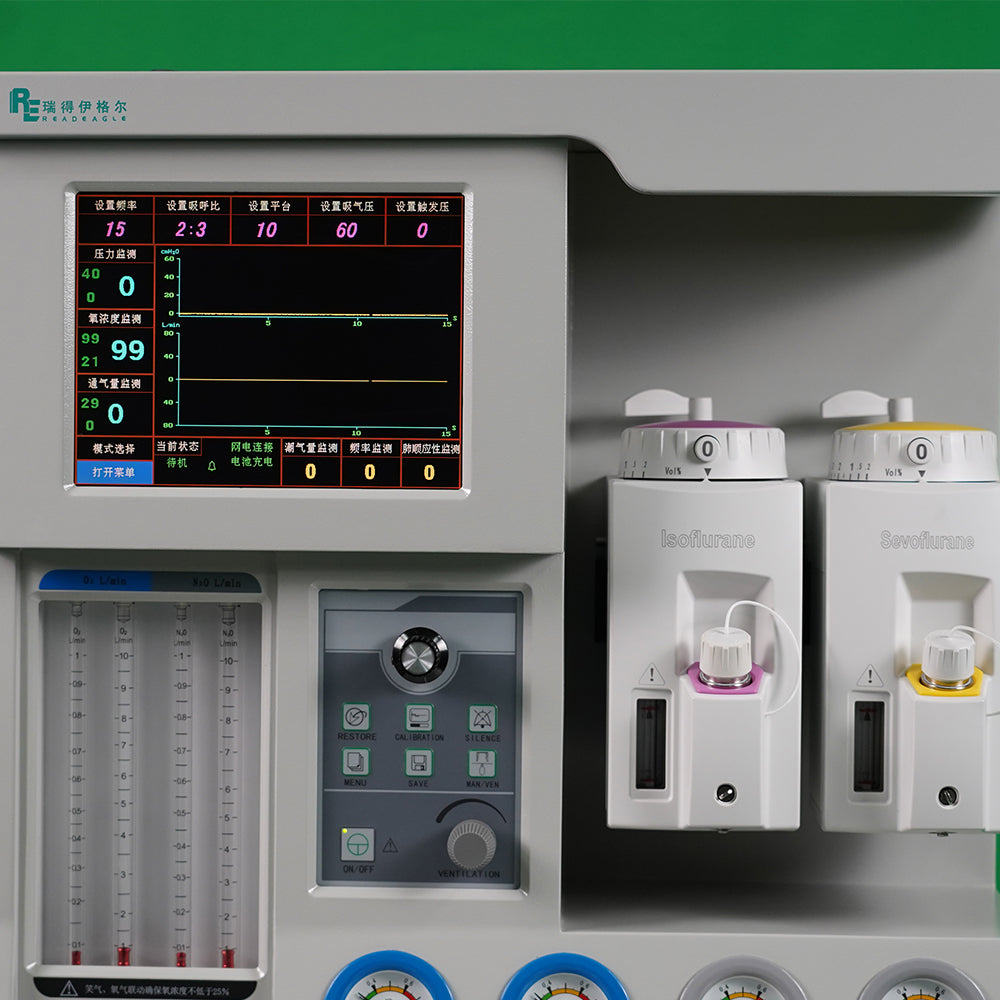

9.10.4" TFT screen, all paramaeters are clearly showed
10.Anesthesia Vaporizer: Halothane, Enflurane, Isoflurane, Sevofluane for choice.
11.Flowmeter: 4 Tube
12.Alarm parameters：
◆ Airway Pressure high/low limit;
◆ FiO2 high/low limit;
◆ Minute Ventilation Alarm;
◆ Low Oxygen Supply Pressure (when Oxygen Supply Pressure is lower than 0.15Mpa,will arouse Audible Alarm);
◆ Nitrous Oxide automatic Cut off Alarm
13.Battery: 12V DC, minimum 120 min.(if with)
14.Package Size: Main box：77×81×153cm,
Accessory box：60×60×47cm
N.W:90KG, G.W:105KG
2.Tidal Volume: 50～1600ml
3.Respiratory Frequency: 1～65bpm
4.I:E ratio: 4:1～1:4
5.Pressure Setting: 1～60cmH2O
6.Trigger Pressure: -20～20cmH2O
7.Working Mode: Semi～open, Semi～closed or Closed system
8.Waveforms (Under Manual and Ventilation): P-t, F-t
9.10.4" TFT screen, all paramaeters are clearly showed
10.Anesthesia Vaporizer: Halothane, Enflurane, Isoflurane, Sevofluane for choice.
11.Flowmeter: 4 Tube
12.Alarm parameters：
◆ Airway Pressure high/low limit;
◆ FiO2 high/low limit;
◆ Minute Ventilation Alarm;
◆ Low Oxygen Supply Pressure (when Oxygen Supply Pressure is lower than 0.15Mpa,will arouse Audible Alarm);
◆ Nitrous Oxide automatic Cut off Alarm
13.Battery: 12V DC, minimum 120 min.(if with)
14.Package Size: Main box：77×81×153cm,
Accessory box：60×60×47cm
N.W:90KG, G.W:105KG
